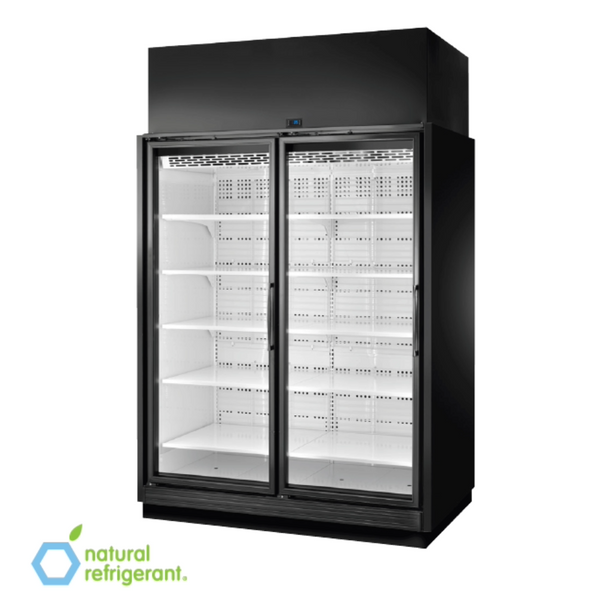

True Retail Merchandiser - TRM2M - Medium Temp - 2 - Door

: True

Introducing the next generation of full-sized grocery merchandisers, True’s Retail Merchandiser (TRM) is an advanced self-contained cabinet built for large storage capacity and exceptional product display. The TRM...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Introducing the next generation of full-sized grocery merchandisers, True’s Retail Merchandiser (TRM) is an advanced self-contained cabinet built for large storage capacity and exceptional product display.

The TRM refrigeration system is charged and sealed at the factory using R290 refrigeration, a natural, environmentally friendly future-proof refrigerant.

FEATURES:

Design

  • True’s commitment to using the highest quality materials and energy-efficient refrigeration systems provides the user with colder product temperatures and lower utility costs.
  • Take advantage of the installation flexibility, convenience, and efficiency of this self-contained case. Fit TRMs through doorways, move the case into location, install the compact sealed condensing systems, and plug it in. No refrigeration connections or technicians are needed for installation.
  • Available in 2,3, and 4-door models, the TRMs are ideal for multi-door case lineups, end cap placements, and general refrigeration storage applications.
  • The entire cabinet structure is built using high-density, polyurethane insulation that has zero ozone depletion potential.
  • Refrigeration redundancy architecture helps prevent product loss.

Refrigeration System

  • With the R290 Natural Refrigeration system, TRM is exempt from changing state and federal regulations.
  • Environmentally friendly R290 Natural Refrigerant System.
  • Self-contained factory-charged and sealed refrigeration system.
  • The True Dynamic Refrigeration Response System allows for quick product pull-down where and when cooling demand is needed.
  • DOE and Energy Star approved.
  • This unit is listed under NSF/ANSI standard 7 for the storage and/or display of packaged products only.

Electrical

  • Unit completely pre-wired at factory and ready for final connection to a 208-240V-1PH-60Hz, cord, and plug set included.
  • NEMA-L6-20P

Innovation

  • Reverse condensing fan motor (RCU) technology helps prevent condenser blockage.
  • Patented True Level leveling systems for a quick install.
  • Plug-and-play electrical system for seamless installation (No refrigeration tech or electrician needed).
  • High-Efficiency Variable Speed Compressor Technology.

Doors

  • Self closing doors with stay open feature.
  • “Low-E” double pane thermal insulated glass door.
  • Viewable glass height of 70” for maximum product display.
  • Magnetic door gasket of one-piece construction, removable without tools for ease of cleaning.

LED Lighting

  • 4000k color temperature LED interior lighting, provides brilliant lighting throughout the cabinet.

Shelving

  • Total of 10 (5 per door) adjustable, solid white powder-coated cantilever shelves 30W” x 25D”.

Accessories

  • Peg-bar shelf for organized display of hanging products.



PHYSICAL DATA
LED Color Temperature 4000k
# Of Refrigeration Decks 1
Usable Capacity Cubic Ft 77.9
Internal Dimensions 62 3/16" x 31" x 68 1/8"
Cabinet Dimensions 67 1/2" x 39 7/8" x 102"
Door Type Glass
Crated Weight (lbs) 1020
Interior Finish White Aluminum
External Finish Black Aluminum
Shelf Type Design Cantilever
# Of Full Shelves 10
Full shelf dimensions 30 3⁄16” W x 25”D
Castors Legs/ Levelers Leg Levelers
Stay Open Door feature Yes
ELECTRICAL & ENERGY DATA
Daily Energy Use (Kwh/Day) 4.7
Energy Star Certified Yes
Condenser Type Air Cooled
Rejected Heat (Btu/h) 1484
Horse Power (Per Deck) 3/4
Total Amps 5.3
Cord Length 10'
Electrical Plug NEMA-L6-20P
REFRIGERATION DATA
Refrigerant Charge (per deck) 4.5 oz.
Refrigerant R290
Min. Temperature 32°
Max. Temperature 41°
END PANEL CONFIGURATION OVERALL COMBINED LENGTH (IN)
TRM2-NN 67 1/2
TRM2-YN 66 3/8
TRM2-NY 67 1/2
TRM2-YY 66 3/8
